SMARTTECH3D Robotized System
Full robotic integration for automated, end-to-end 3D inspection.

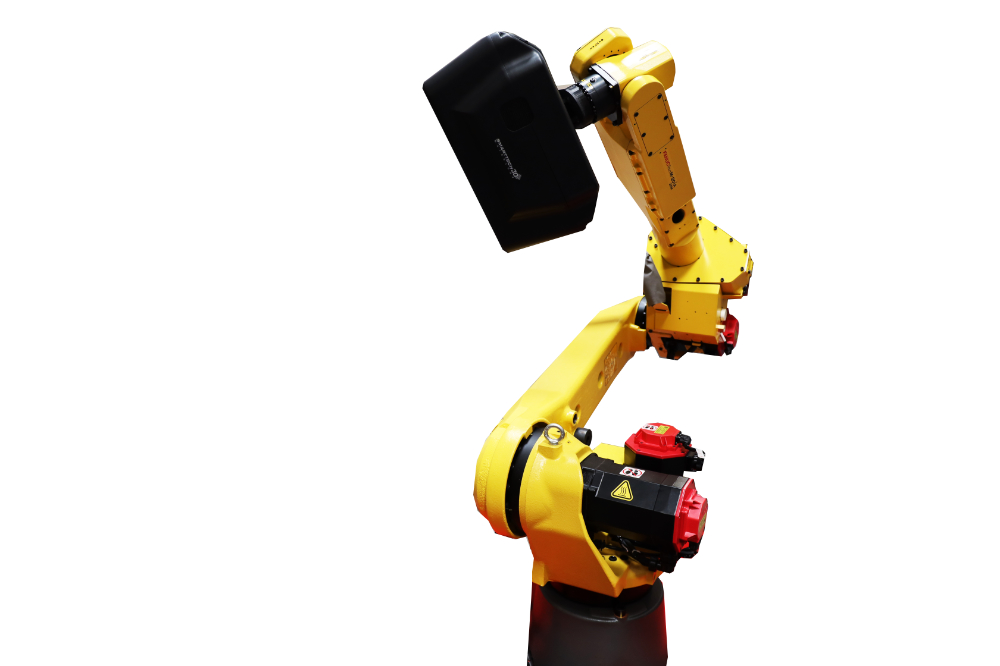

The SMARTTECH3D Robotized System is a structured-light scanning head designed for seamless integration with industrial robots.
It enables automated inspection, digital twin creation, and high-accuracy measurement in continuous production environments.
Key Specs at a Glance
Accuracy
22–63 µm
Resolution
12 MP / 20 MP
Robot Compatibility
KUKA, Fanuc, Universal Robots, Kawasaki, Hans Robot
Use Cases
Digital Twins, Industrial QC, Reverse Engineering, Automation
Key Advantages
Seamless Robotic Integration
Connects directly to major robotic platforms, enabling automated inspection and continuous operation.
High-Resolution Capture
Up to 20 MP stereo detectors and structured LED projection deliver exceptional surface detail across large or complex parts.
Certified Industrial Precision
Eliminates human error and ensures consistent, repeatable results in high-volume production.
End-to-End Workflow
Automatically creates 3D models, compares to CAD, and generates inspection reports within SMARTTECH3Dmeasure.
Built for Real-World Automation
Designed around Industry 4.0 principles, the Robotized System digitizes, analyzes, and communicates measurement data across your entire enterprise.
Its metrology-grade precision and automated workflows eliminate manual scanning steps and accelerate production feedback loops.
The result: faster inspections, improved traceability, and complete visibility into every part produced.
Technical Specifications
| Model | Scanning Technology | Detector Resolution | Measuring Field* (mm2) | Measuring Depth* (mm) | Sampling* (points/mm²) | Accuracy (µm) |
|---|---|---|---|---|---|---|
| 12-12 MP | WHITE/GREEN LED | 12 MP | 225x300 | 120 | 178 | 30/22 |
| 12 MP | 300x400 | 180 | 100 | 43/33 | ||
| 12 MP | 455x600 | 240 | 45 | 63/48 | ||
| 20-20 MP | WHITE/GREEN LED | 20 MP | 200x300 | 120 | 335 | 30/22 |
| 20 MP | 260x400 | 180 | 189 | 43/33 | ||
| 20 MP | 400x600 | 240 | 84 | 63/48 |
*(±10 % tolerance)
Applications
Digital Twins & Process Monitoring
Create live, data-driven models for continuous improvement.
Industrial QC
Automate scan-to-CAD inspection across robotic cells or multiple stations.
Reverse Engineering
Capture complex geometries with robotic precision.
Research & Development
Validate prototypes and monitor material performance under production conditions.
SMARTTECH3D measure Software
Integrated Robotic Control
Manage robotic motion, scanning, and analysis directly within SMARTTECH3Dmeasure.
Generate pass/fail reports, compare to CAD models, and project deviations onto the part from a single workstation.
Proof & Compatibility
- Certified to international metrology standards
- Integrates with KUKA, Fanuc, UR, Kawasaki, and Hans Robot platforms
- Trusted by aerospace, automotive, and manufacturing clients worldwide
- Proven in Industry 4.0 and fully automated inspection environments
Find Your Perfect Fit
Automate with confidence.
